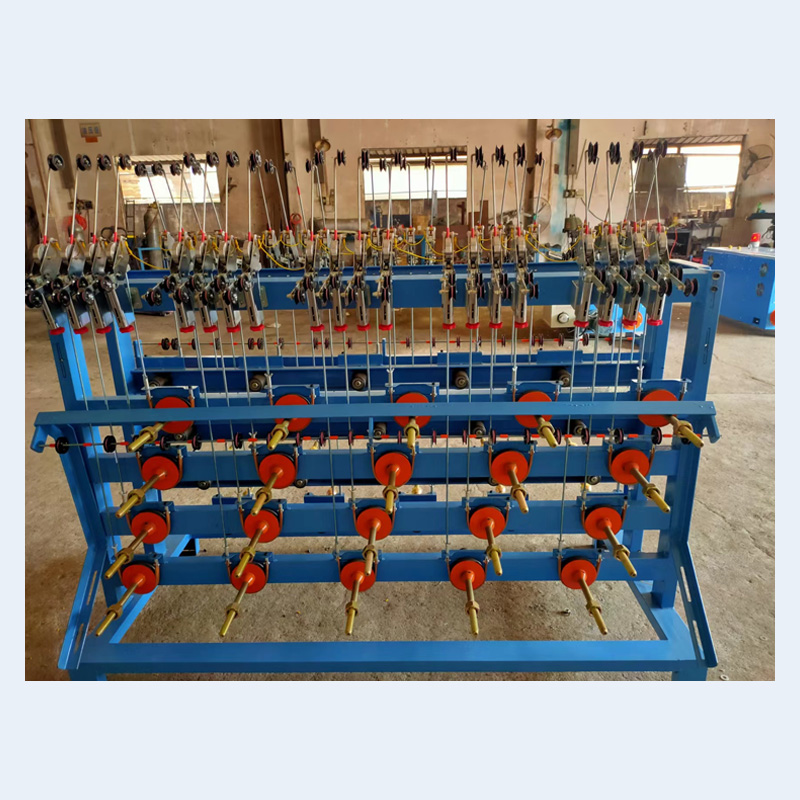

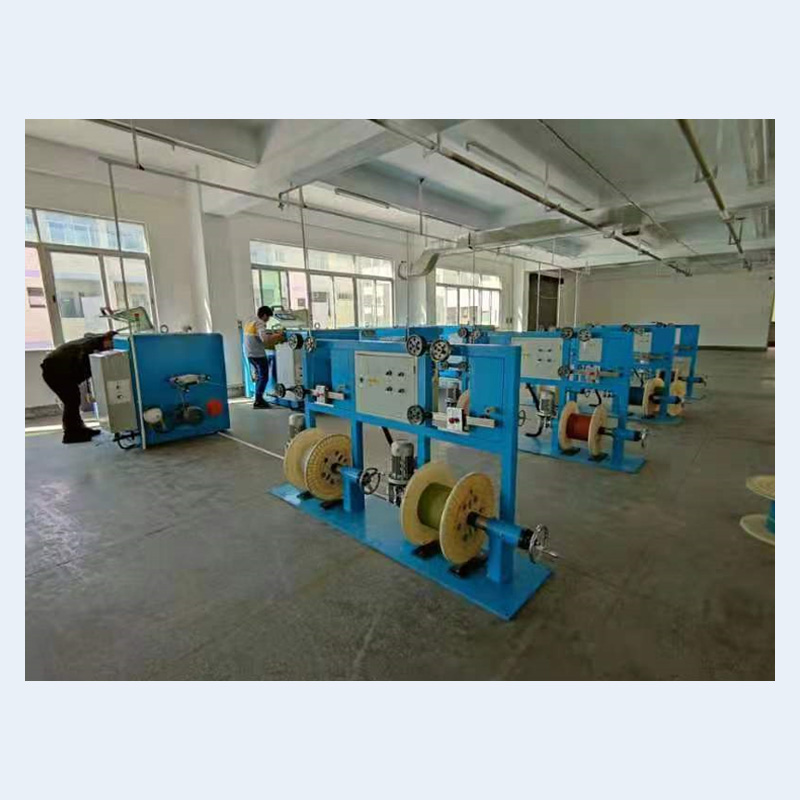

Model 500 High Speed Copper Twisting Machine
Product description
Application
The Model 500 High-speed Automatic Cable Twisting Machine is suitable for twisting various types of soft/hard conductor wires (such as copper wire, enameled wire, tinned wire, copper-clad steel, copper-clad aluminum, etc.) and electronic data cables.
Specifications
Translation Machine Model | Model 500 |
Translation Machine Rotational Speed | 2200/3000 RPM |
wire diameter range | Ø0.08-0.45mm |
Twisted Pair Cross-sectional Area | 0.035-2.00mm2 |
Twist Pitch | 4.24-39.9mm |
take-up spool size | Ø500mm |
Tension Control | mechanical friction tension automatic tension |
Wire Harness Assembly | The bearing type wire arrangement allows for adjustable spacing, width, and pitch |
Brake System | Electromagnetic brake with automatic brake when internal or external wires are disconnected |
Lift System | Manual hydraulic or electric hydraulic lifting |
