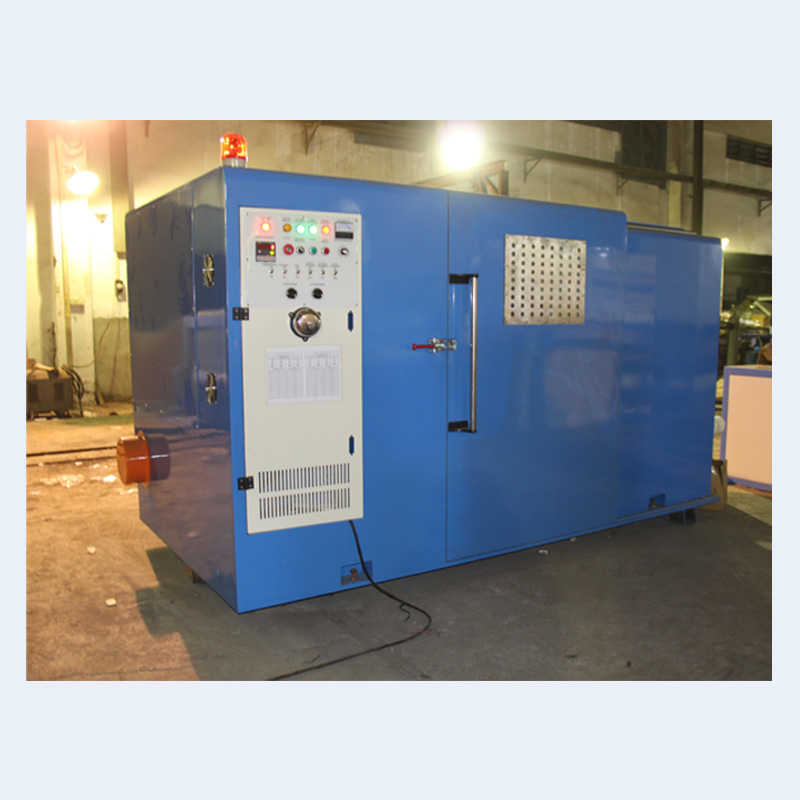

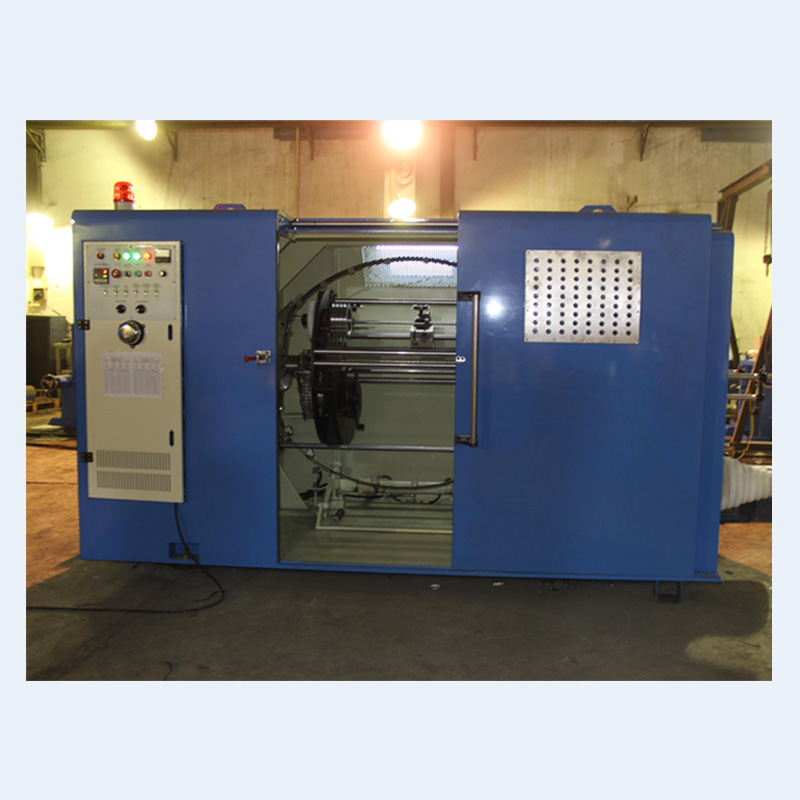

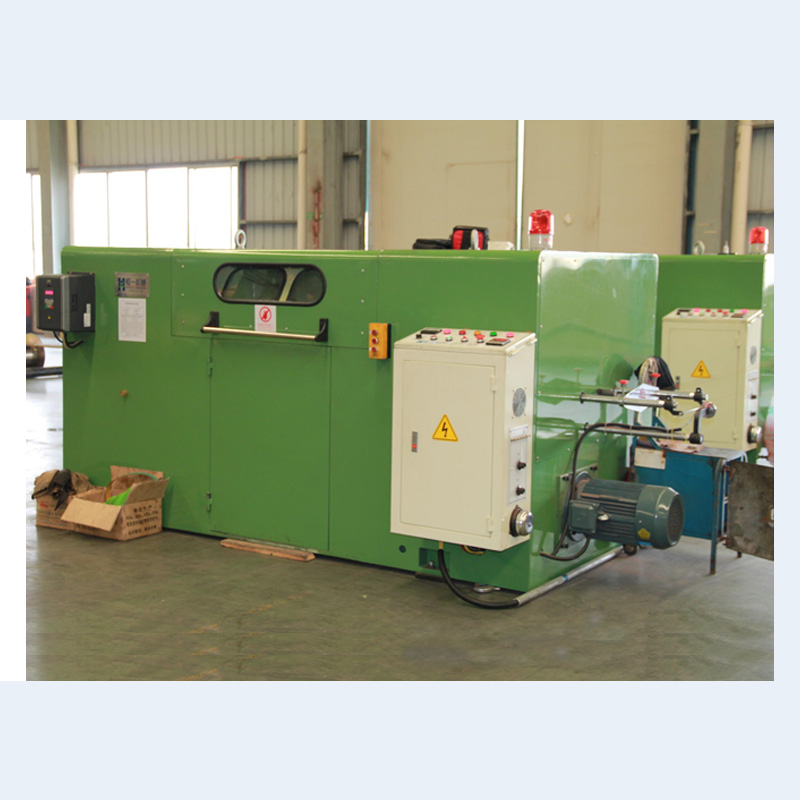

800 High-speed Copper Twisting Machine
Product description
Application
800 high-speed automatic wire twisting machine is suitable for copper wire twisting of computer ribbon cable, electronic wire,
telephone line, network cable, and PVC wire
Specifications
Translation Machine Model | Model 800 |
Translation Machine Rotational Speed | 1200 RPM |
wire diameter range | Ø0.38-1.0mm |
Twisted Pair Cross-sectional Area | 0.8-12.00mm2 copper wire |
Twist Pitch | 22.51-153.32mm |
take-up spool size | Ø800mm |
Tension Control | mechanical friction tension automatic tension |
Wire Harness Assembly | The bearing type wire arrangement allows for adjustable spacing, width, and pitch |
Brake System | Electromagnetic brake with automatic brake when internal or external wires are disconnected |
Lift System | Electric hydraulic lifting |
