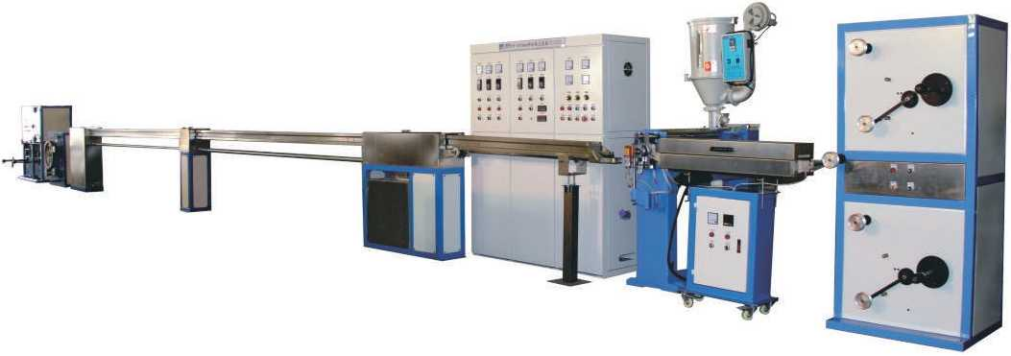

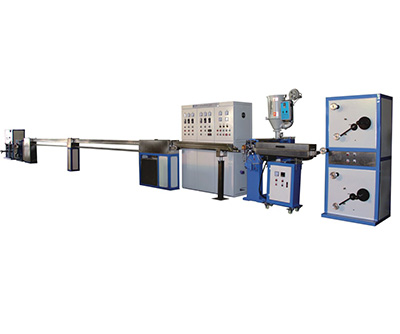

Compact fiber production line Tight Buffered Fiber Extrusion Line
Product description
Application
This equipment is mainly used for the production of compact fiber with indoor diameter 0.6mm and 0.9mm.
Specifications
Structure speed. Structure speed | 350m/min |
Production outside dia. Production outside Dia. | Ø0.6-Ø0.9mm |
Fiber tension. Fiber tension | 0.4N-1.2N ±0.05N |
The Tension of take up the line | O.5N-3N ±0.1N |
Pay-off tray specification Bobbin of pay off | standard optical fiber bobbin 25KM or 50KM |
Bobbin of take up the size of the reel | Ø200-Ø400mm |
Additional loss. Additional loss | <0.02db/km(SM光纤 Optical fiber) |

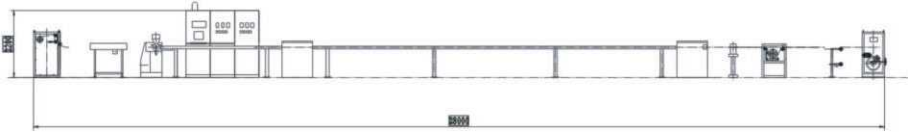

Line length Line length | <22m |
