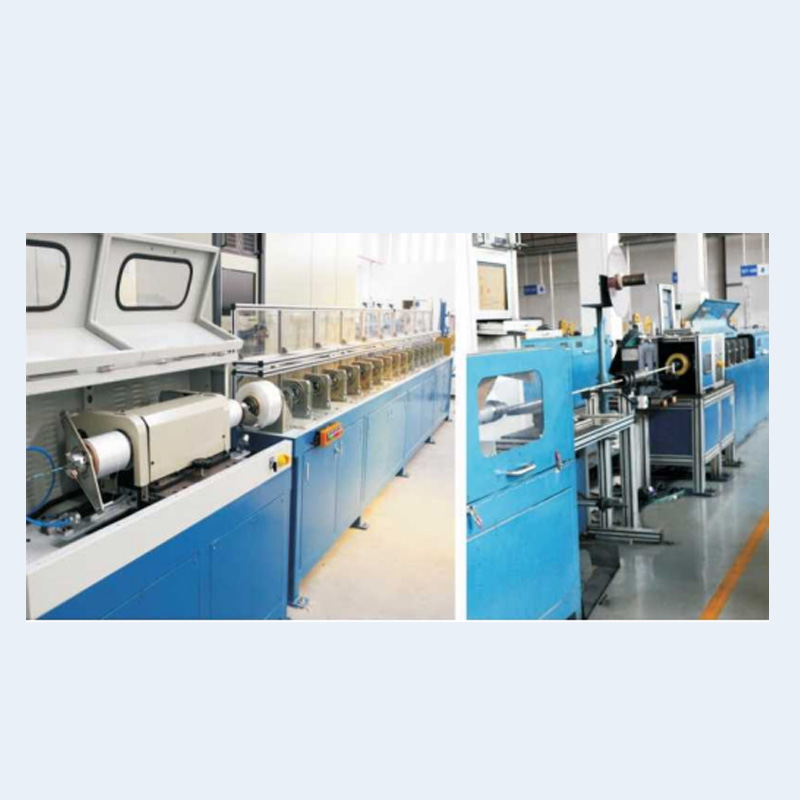

Optical Cable"SZ"Twisting & Cabling Machine
Product description
Application
The model machine mainly used for "SZ" twisting and cabling below 3.5MM the loose sleeve.
Features:
1. The active pay-off device is used for bundle tube pay-off, with stable and reliable tension control. The maximum number of loose tubes can reach 12.
2. The SZ stranding adopts a fully differential structure, and the stranding pitch is stable.
3. The yarn wrapping adopts a double-head single-point bidirectional cross wrapping method, and the yarn tension adopts segmented control, which is stable and reliable.
4. The production line has sound and light alarms for tension overload, breakage of pay-off wire, and breakage of water-blocking tape.
5. The control system adopts international popular industrial computer control technology, with high automation degree, and can link with MES and ERP systems to track and manage production in real time.
6. The main control system components are internationally well-known brands, and the production line has high stability and reliability.
SPECIFICATION
Structure speed | 100m/min |
Number of beam tube | 6--12 |
SZ stranding pitch | 50-800mm |
SZ reverse angle | ±4n-±24n |
SZ Max. speed | Max 1800 rpm |
Yarn machine max. speed | Max 4000 rpm |
Yarn pitch | 20mm-500mm |
Additional loss | <0.02db/km(1550nm) |
Line length | <40m |
Power supply | AC380V ±10% 50HZ 三相五线Three-phase five wire |
Power | «40KW |
