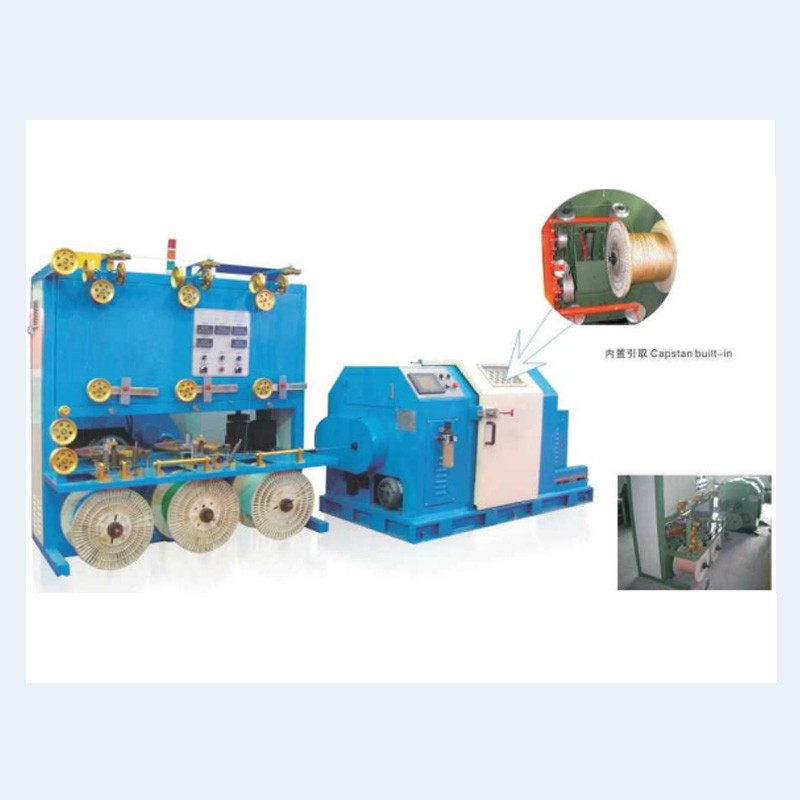

HY-0400 Built-in Tension Type Cantilever Single Twisting Machine
Product description
Application
HDMI, DP etc. high frequnce cable, data cable, electronic wire core wire pair twisting or multi-strands twist stranding.
Specifications
Machine model | 400 Horizontal high speed contilever single twist strander |
Core specification | AWG32-AWG20 |
Twisted out dia. | Ø4.0mm |
Lay pitch | 15-60mm |
Rotate speed | MAX1000RPM |
Power | Main motor:5HP, Pay-off motor:l/2HP |
Core wire tension | Linear Guidways + Slide weight hommer type/Mechanical lever * Slide moving, with on-line tension test |
Taping tension | Constant tension electromagnetic brake wheel/Automatic tension trace instrument, taping tension keep constant from start to end. |
Take-up tension | Magnetic powder tension, auto-tracing, take-up tension keep constant from start to end. |
Rolling ring device | Shaft arange take-up, no damge in product, row distance and breadth set by yourself. |
Brake | The main shaft of cantilever:Disc type brake/Take-up: Electromagnetic brake |
Pay-off type | Three head driven pay-off, adjust the speed by inverter, controled with main machine by linkage, and establish protection device for wire break |
